Home > Buzzers, Alarms & Sirens > Magnetic Buzzers > MB-11

Features
bullet1.5 - 28VDC
bulletSmall Size

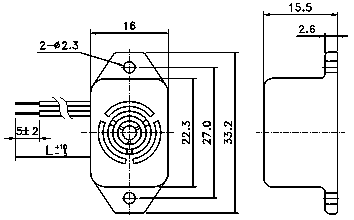

bulletScrew Mounting with

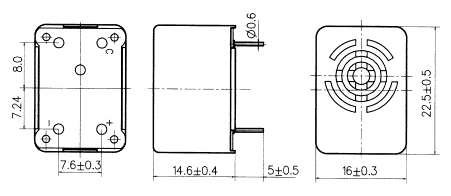

Lead Wire or PCB Pins

Model Operating
Voltage
Range
(VDC)
Rated
Voltage
(VDC)
Max.
Current
at Rated
Voltage
(mA)
Res.
Freq.
(Hz)
50
Min. Sound
Pressure @
Rated
Voltage
 (dBA/20cm)
Pulse Rate
@ Rated
 Voltage
(Pulses/
Second)
Tone Terminal
MB-11S1 1.1 - 1.7 1.5 25 400 75 NA Solid Pins/
Leadwires
MB-11S3 1.5 - 4.0 3.0 25 400 80 NA Solid Pins/
Leadwires
MB-11S6 3.0 - 9.0 6.0 25 400 80 NA Solid Pins/
Leadwires
MB-11S9 4.5 - 12.0 9.0 25 400 80 NA Solid Pins/
Leadwires
MB-11S12 6.0 - 16 12 25 400 80 NA Solid Pins/
Leadwires
MB-11S24 15 - 24 24 25 400 80 NA Solid Pins/
Leadwires
MB-11S28 18 - 32 28 25 400 80 NA Solid Pins/
Leadwires
Specifications and dimensions subject to change without notice.
