OEM Bulbs for Sharp
Microwave Oven These are the original equipment 125VAC 30W E17 base bulbs used in many Sharp microwave ovens manufactured from 1990-2000. Also used in KitchenAid microwave ovens and Whirlpool microwave ovens. Sold in boxes of 50 lamps. Some lamps have cosmetic blemishes not affecting functionality or life. (The standard version is known as a 30T8) Made in Taiwan. Also available: 20W, 25W and 40W lamps used in other microwave ovens. |
|
![]() |
Automotive #93 Bulbs Standard 12.8V 1.04A S-8 SC bayonet base automotive lamps. Bases have significant blemishes/discoloration, not affecting functionality or life. Sold in boxes of 500 lamps. Made in Taiwan.
|
![]() |
Custom Instrument Lamp or
Indicator Lamp 6V 150mA T3-1/4 22mm (0.87") long 10.4mm (0.41") diameter 5000 hours 1" leads. Made in Taiwan. |
Instrument Lamp or
Indicator Lamp Industry #327 - T1-3/4 28V 40mA .34MSCP single contact midget flanged base. 16mm (.63" long) 5mm diameter. Also known as an "aircraft indicator lamp" or "aircraft instrument lamp". High quality. Made in Japan. |
|
Instrument Lamp or
Indicator Lamp 110VAC 3W T3-1/4 28mm (1.1") long 10mm (0.39") diameter single contact bayonet base (BA9S). Made in Taiwan. |
|
Custom Instrument Lamp, Indicator Lamp
or Backlighting Lamp 6.3V 85mA Axial Leads Frosted Glass Approximately T1-3/4 15MM long x 4MM diameter (.59" x .16") with 1-1/2" wire leads. Sold in boxes of 500 lamps. Made in Japan. |
|
![]() |
Instrument Lamp, Indicator Lamp
or Microscope Bulbs Industry #EL-2 8V 12W 1.5A 14.5mm long miniature bayonet base (BA-9S) frosted glass 8V 12W. Good quality. Made in Taiwan. |
![]() |
Custom 125VAC
Neon Lamp Assembly for Instrument or Indicator NE2H neon lamp (T1 size 1.9mA) with attached 47K ohm 1/4W resistor and 2.5" rigid insulated wire leads, covered by shrink tubing. Made in Japan |
F4T5BL
Ultra-Violet (UV) Blacklight Lamp 4W 134.5MM long 15.5MM diameter 0.162 Current (amps) 0.25 UV output (watts) 3000 hours average life miniature bipin base(G5) Made in Korea |
|
F15T8BL Ultra-Violet (UV)
Blacklight Lamp 15W 457.2MM long 25.4MM diameter 55V T8 G13 Base Made in Japan |
|
Custom Tubular Cold
Cathode UV Lamp Axial Leads Peak wave length 254nM. UV Intensity 1500mW/cm2. Circuit voltage 600V lamp current 6mA, 68MM long x 8.9MM diameter. (2.67" x 0.35"). 37MM arc length. Designed for avionics displays, and originally sold for almost $100 each. Made in Japan. |
|
LED 3mm Red Diffused Shows red color when not lit. Made in Taiwan |
|
LED 5mm Red Diffused Shows red color when not lit. Made in Taiwan |
|
LED 5mm Green Diffused Shows green color when not lit. Made in Taiwan |
|

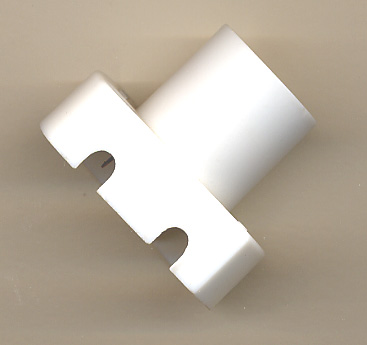

E17 Lamp Socket Intermediate Screw Socket or Lampholder made in Polycarbonate plastic with 2 solder lugs on under surface and internal brass threads. rated 300VAC 1A. Good quality. Made in Japan. |
|

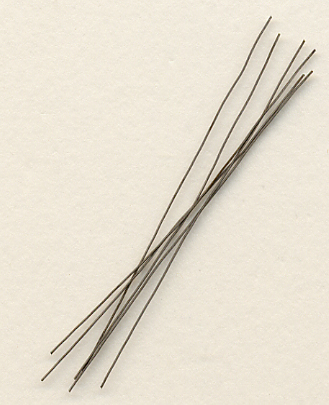

Incandescent Lamp
Filament 120VAC 60W filaments. Made in Japan. |
|
![]() |
Taplight Standard automotive #1157 brake and turn signal light bulbs with 2 wires coming out of the bulb's base to tap trailer lights into the existing vehicle light systems. Comes with insulated connectors on the wire ends and 14" wires. Available bulk or in blister cards. Made in Taiwan. |
Towlight Longer version of the taplights shown above. With 28 foot wires. Typically these will be used in towing a car behind a van or trailer. Made in Taiwan. |
|
Strobe Lens - Blue
Color Strobe Lens in polycarbonate plastic 66mm diameter 37mm high |
|

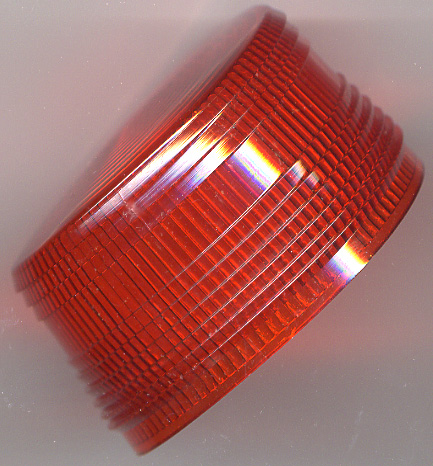

Strobe Lens - Red
Color Strobe Lens in polycarbonate plastic 66mm diameter 37mm high |
|

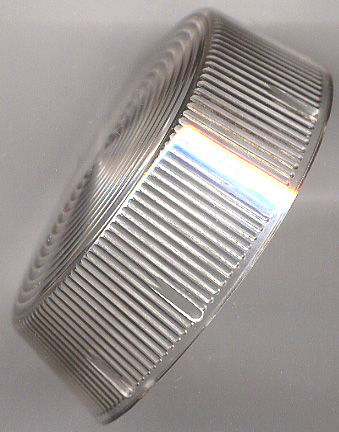

Strobe Lens -
Clear Color Strobe Lens in polycarbonate plastic 66mm diameter 22mm high |
|

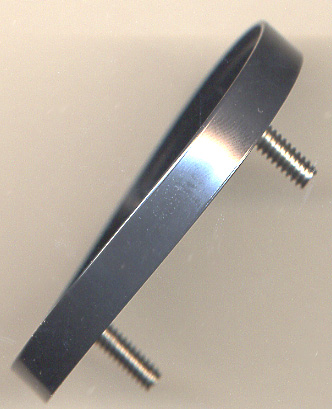

Strobe Lens Base -
Black Color Strobe Lens in polycarbonate plastic 66mm diameter 8.7mm high |
Lamp Type | Shokai # | Description |
T-1/2 1.25V | 25mA wire terminals Japan | |
TL-1 1.5V | 60mA lens end wire terminals | |
T-1 3V | S-1304A | 8mA wire terminals |
T-1 3V | S-1307A | 40mA wire terminals |
T-1 3V | S-1309A | #7232 120mA wire terminals |
T-1 5V | S-1312A | 60mA wire terminals |
T-1 5V | S-1315C | 75mA bi-pin |
T-1 5V | S-1316A | #715 115mA wire terminals |
T-1 5V | S-1318A | 125mA wire terminals |
T1-1/4 1.35V | S-1402A | 60mA wire terminals Japan |
T1-1/4 12V | S-1416A | 40mA wire terminals |
T1-1/4 14V | S-1418C | 80mA bi-pin Japan |
TL1-3/4 1.5V | lens end screw base | |
TL1-3/4 2.5V | #253 35mA lens end midget groove | |
T1-3/4 6V | 85mA axial frosted Japan | |
T1-3/4 6.3V | S-1518F | 40mA midget screw Japan |
T1-3/4 6.3V | S-1521A | 20mA wire terminals Japan |
T1-3/4 14V | #386 80mA midget groove Japan | |
T1-3/4 14V | S-1527E | 80mA midget flange Japan |
T1-3/4 28V | S-1535C | 24mA bi-pin |
T1-3/4 28V | S-1537CA | 40mA bi-pin |
T1-3/4 28V | S1538A | #1764 40ma wire terminals |
T1-3/4 28V | S1538E | #327 40ma SC midget flange |
T1-3/4 28V | S1538C | #7387 40mA bipin Japan |
TL-3 1.2V | #112 Mini Screw | |
T3-1/4 5V | #1850 90mA mini bay Taiwan | |
T3-1/4 6V | 150mA .5 MSCP 100 hrs wire | |
T3-1/4 6.5V | #46 .3A E10 screw Japan | |
T3-1/4 28V | #464 170mA wedge Taiwan | |
T3-1/4 110VAC | 3W SC Bay | |
G3-1/2 1V | .1A screw | |
G3-1/2 1.4V | .1A screw | |
G3-1/2 2.46V | #245 50mA mini screw | |
G4-1/2 1.25V | #401 .22A mini screw Taiwan | |
6ESB 6V | T-2 Telephone slide 40mA Japan | |
GE | T-4.6 Tel Slide 24V 20ma | |
S-11 120VAC | 10W frosted candelabra | |
EL-2 8V | 12W frosted mini-bayonet | |
15T6 | 15W 125V Candelabra Screw Korea | |
15T7DC 120VAC | 15W Japan | |
25T8 120VAC | 25W DC Bay BA15D Japan | |
25T8 | 125VAC 25W E17 screw | |
30T8 | 125VAC 30W E17 screw | |
FESTOON | SF1605 12V 5W 10mm diameter | |
UV | 65mm L x 8mm diameter 37mm arc | |
F4T5BL | Korea | |
F15T8BL | Japan | |
NEON | NE-2H | |
NEON | NE-3 (NE-2H with 47K resistor) | |
G6 14V 15/3CP | DC Index Base | |
STROBE | 12V Blue High Top sealed | |
STROBE | 12V Red unsealed | |
STROBE | 12V Green unsealed | |
Lamp Socket | E17 Screw Base Plastic Japan | |
