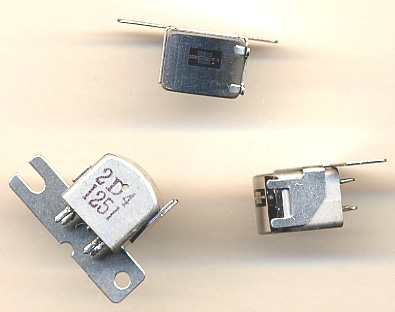

High quality stereo cassette tape record/playback head for metal or standard tapes. Terminates to four pins. Custom made by Ikejiri (Japan), one of the world's most respected tape head manufacturers. Model RS-1251.
Impedance @ 1KHZ 850 ohms @ 100uA
Impedance @ 80KHZ 28K ohms @ 100uA
DC Resistance 215 ohms @ 20 C
Bias Current @ 1KHZ 400uA/900uA*
Audio Current @ 1KHZ 400uA/900uA*
Rec/PB Sensitivity @ 1KHZ -70.0dB/-68.0dB*
PB Sensitivity @ 315HZ @25mW level -72.0dB

Rec Frequency Resp. @10KHZ 1K=0dB -9.0dB/-2.0dB*
PB Frequency Resp. @ 10KHZ 315Hz=0dB +9.0dB/+13.0dB*

Distortion @ 1KHZ 3% max
Induction Crosstalk @1kHz   -30.0dB max
Adjacent track Crosstalk @1kHz   -35.0dB max
Grounding Resistance @  250VDC core to mounting base 3 ohms max

Insulation Resistance 2 250VDC terminal to mounting base 50M ohms min
Size (LxWxH) mm
(w/o bracket)
10 x 10 x 7
Bracket Hole distance 18mm
Weight (oz.) 0.2

Where 2 specifications are indicated, the specification is standard/metal test tape
