F-24K Series

Home > Potentiometers > Rotary > F-24 Series

Typical Models - F-24 Series

F-24KN Single - No Switch	F-24KNP Single - No Switch		F-24KNP1 Single - No Switch		F-24KNP2 Single - No Switch


F-24KNPU Single - No Switch	F-24SP Single - With Switch		F-24SP4 Single - With Switch		F-24KSPU Single - With Switch


F-24SPU4-10A Single - With Switch		F-24SPP4 Single - With Switch		F-24SPP9 Single - With Switch

Click to Download F-24 catalog (263kb)

F-24K Series
Electrical Characteristics
Total Resistance (Tolerance)	500 ohm - 1 Meg ohm (±20%)
Resistance Tapers Available	A, B, C, D
Max. Operation Voltage	Linear Taper: 500VAC Other Tapers: 250VAC
Rated Power - Single Unit	Linear Taper: 0.5W Other Tapers: 0.25W
Sliding Noise	Less than 100 mV
Insulation Resistance	More than 100 M ohm at DC 500 V
Withstand Voltage	1 minute at AC 500 V
Residual Resistance	Term. 1 - 2: Less than 10 ohm Term. 2 - 3: Less than 10 ohm
Switch Circuit	Single Pole Single Throw (SPST)
Switch Contact Resistance	Less than 50 Meg Ohms
Switch Rated Power	1.0A at 125VAC
Switch Rated Power (Insulated Shaft F-24KSP Series)	6.0A at 125VAC
Mechanical Characteristics
Total Rotational Angle	300º ± 10º
Total Rotational Angle (Insulated Shaft F-24KSP Series)	253º ± 5º
Rotational Torque	30 gf.cm - 200 gf.cm
Rotational Stopper Strength	5.0 Kgf.cm Min.
Push-Pull Strength	10.0 Kg.f Min.
Switch Rotational Angle	50º ± 10º
Switch Action	150 gf.cm - 800 gf.cm
Durability (Rotational Life)	10,000 Cycles
Some models in each series may deviate from above specifications. Please see individual data sheets for complete specifications. Dimensions and specifications subject to change without notice.

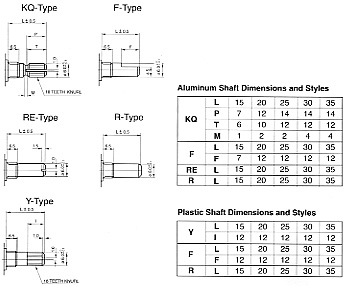

Shaft styles:
