Home > Speakers > Miniature Flat Panel Speakers > DBA 16-9

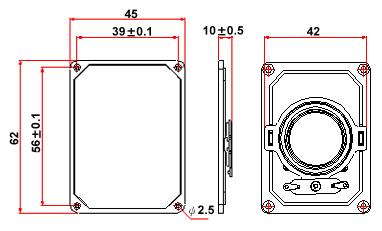

Dimensions  (L x W x H) (MM) 62 x 45 x 10
Resonant Frequency  570 Hz

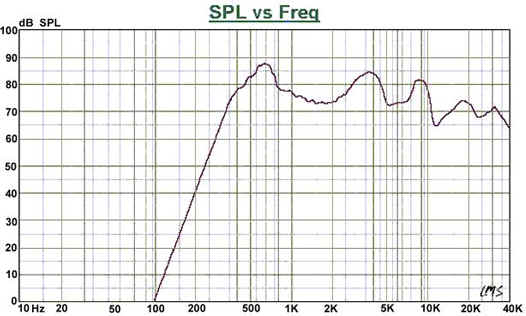

Frequency Response Fo - 11KHz
Sound Pressure Level (1M/1W) 80dB 2dB
Rated Power (Nom./Max. W) 2/4
Rated Impedance (ohms) 4
Noise Handling Capability 2W/96 hours
Magnetic Field Gauss 60
Weight 32.7gms

Dimensions and specifications subject to change without notice.
