Wallmount travel adaptors are available with user selectable voltage outputs, with power outputs from 500mA to 2400mA.  Common features are automatic switching to accept 100-240VAC 50/60Hz, and 6 user interchangeable output plugs to mate with all of the popular output terminations your customers will need.  Custom face plates with your company's name and logo can be prepared from your artwork.
Other features:
- High efficiency: >80%
- Short Circuit Protection
- Overload Protection
- Folding Wall Plug for compact packing
- "Power On" LED Indicator
- US, Canadian and European approvals have been obtained for many models.		 Output Plugs:
2) 1.35 x 3.5MM
4) 1.7 x 4.75MM
6) 2.1 x 5.5MM
 1) 0.75 x 2.35MM
3) 1.7 x 4.0MM
5) SONY-type with reverse polarity protection
Click for Larger ImageClick for Larger Image
Click for Larger Image
Click for Larger Image Click for Larger Image

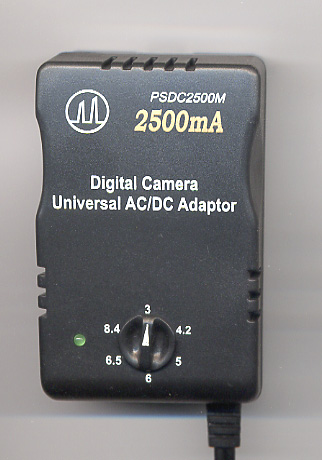

PSDC2500M Shown
Part
Number		 Output Voltage Options
VDC
(User Selected)		 Output
Current
(mA)
PST500M 3, 4.5, 6, 7.5, 9, 12 500
PST800M 3, 4.5, 6, 7.5, 9, 12 800
PST1000M 3, 4.5, 6, 7.5, 9, 12 1000
PST1200M 3, 4.5, 6, 7.5, 9, 12 1200
PST1800M 3, 4.5, 6, 7.5, 9, 12 1800
PSDC2500M 3, 4.2, 5, 6, 6.5, 8.4 2500
