Home > Battery Holders > Coin Cell Holders

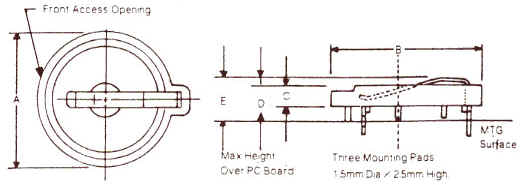

P/N Coin
 Cell		 Mount #
 Cells		 A
(MM) 		 B
(MM) 		 C
(MM)		 D
(MM)		 E
(MM)

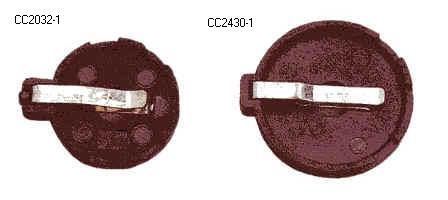

CC2032-1 CR2032 Pins 1 22.6 27.3 5.1 7.6 8.4
CC2032-2 CR2032 Pins 1 See Drawing
CC2032-3 CR2032 SMD 1 See Drawing
CC2430-1 CR2430 Pins 1 27.7 30.4 5.7 7.2 8.3
Dimensions subject to change without notice.
