| Part Number |
Picture | Drawing | Connector/ Solder Pins |
Number of Pins/Rating |
||
| 2 Amp | 5 Amp | |||||

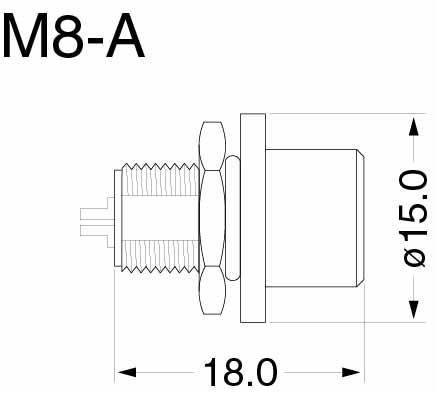

| M8-A |  |
 |
Female | Female | 3, 4 | |

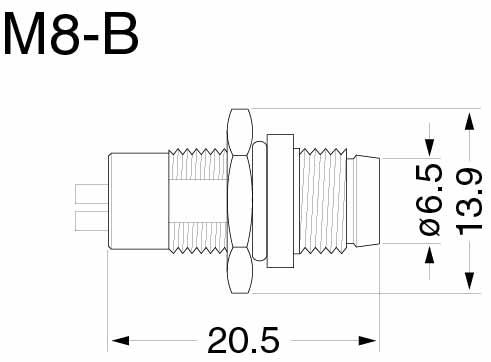

| M8-B |  |
|
Male | Male | 3, 4 | |

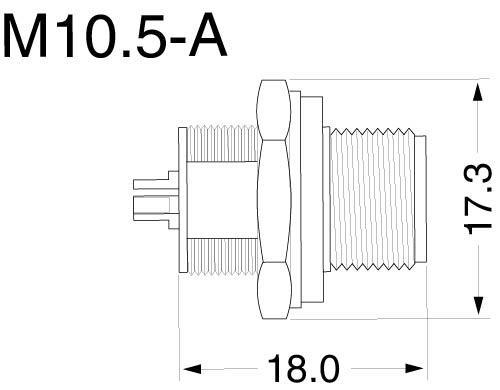

| M10.5-A |  |
|
Male | Female | 2.3,4,5 | |

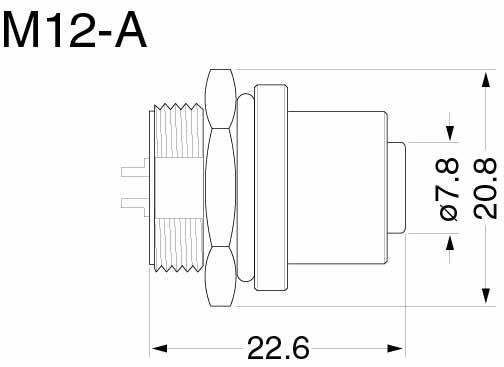

| M12-A |  |
|
Female | Female | 8 | 4, 5 |

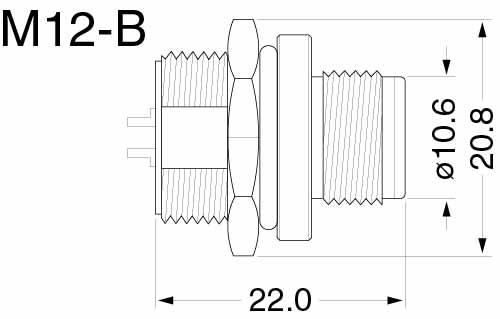

| M12-B |  |
|
Male | Male | 8 | 4. 5 |
Click for Mating Cable Assemblies |
||||||
