| Part Number |
Voltage | Watts | Base | Lumin. Flux (lm) |
Life (Hours) |
| H1 12V55W | 12 | 55 | P14.5s | 1300-1600 | 150 |
| H1 12V100W | 12 | 100 | P14.5s | 1900-2200 | 150 |
| H1 24V70W | 24 | 70 | P14.5s | 1300-1400 | 150 |
| H1 24V100W | 24 | 100 | P14.5s | 1800-2200 | 150 |
| H2 12V55W | 12 | 55 | X511 | 1530-2070 | 200 |
| H2 12V100W | 12 | 100 | X511 | 1955-2185 | 150 |
| H2 24V70W | 24 | 70 | X511 | 1830-2470 | 150 |
| H3 6V55W | 6 | 55 | PK22s | 1100-1400 | 150 |
| H3 12V55W | 12 | 55 | PK22s | 1400-1600 | 150 |
| H3 12V100W | 12 | 100 | PK22s | 1900-2200 | 150 |
| H3 24V55W | 24 | 55 | PK22s | 1200-1400 | 150 |
| H3 24V70W | 24 | 70 | PK22s | 1400-1800 | 150 |
| H3 24V100W | 24 | 100 | PK22s | 1800-2200 | 150 |
| H4 12V60/55W | 12 | 60/55 | P43t or P45t |
1300-1500/ 950-1200 |
150 |
| H4 12V100/90W | 12 | 100/90 | P43t or P45t |
1800-2200/ 1600-1800 |
150 |
| H4 12V130/90W | 12 | 130/90 | P43t or P45t |
2700-3000/ 1600-1800 |
80/ 150 |
| H4 12V130/100W | 12 | 130/100 | P43t or P45t |
2700-3000/ 1800-2200 |
80-100 /150 |
| H4 24V75/70W | 24 | 75/70 | P43t or P45t |
1500-1800/ 1200-1400 |
150 |
| H4 24V100/90W | 24 | 100/90 | P43t or P45t |
1800-2300/ 1600-1800 |
150 |
| H4 24V130/100W | 24 | 130/100 | P43t or P45t |
2800-3000/ 1800-2200 |
80/150 |
|

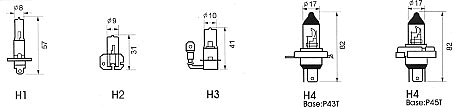

Base Options: |
|||||
 |
|||||
|
Dimensions and specifications subject to change without notice. |
|||||
