| Paper Cone - Metal Frame - Round or
Oval |
| Model |
Dimensions |
Wattage |
Imped.
(±15%)
ohms |
Resonant
Frequency
(Hz±150) |
SPL
(dB/WM) |
Frequency
Range (Hz) |
Weight
(grams) |
Frame |
Dia.
±0.1
(MM) |
Thick.
±0.1
(MM) |
Nom. |
Max. |
| 38CP08 |
38 |
9.0 |
0.25 |
0.50 |
8 |
800 |
81 |
600-7K |
9.5 |
Plastic |
| 40CP08 |
40 |
8.6 |
0.25 |
0.50 |
8 |
680 |
80 |
380-5.5K |
10 |
Plastic |
| 45CP08 |
45 |
8.6 |
0.25 |
0.50 |
8 |
500 |
83 |
250-6K |
10.5 |
Plastic |
| 50CP08 |
50 |
8.6 |
0.25 |
0.50 |
8 |
450 |
82 |
160-5K |
13 |
Plastic |
| 50CM08 |
50 |
8.6 |
0.25 |
0.50 |
8 |
500 |
81 |
300-6K |
13 |
Metal |
| 57CP08 |
57 |
11.4 |
0.25 |
0.50 |
8 |
450 |
82 |
250-5.5K |
14.5 |
Plastic |
| 57CM08 |
57 |
8.9 |
0.25 |
0.50 |
8 |
280 |
82 |
160-4.5K |
13.6 |
Metal |
| 57FS08 |
57 |
20.0 |
0.25 |
0.50 |
8 |
500 |
80 |
300-5K |
27 |
Plastic |
| 66CM100 |
66 |
20.4 |
0.30 |
0.50 |
100 |
340 |
90 |
340-4K |
47.0 |
Metal |
|
| Specifications subject to change without notice. |
| Rectangular
- Plastic or Metal Frame |
| Model |
Dimensions |
Wattage |
Imped.
(±15%) |
Resonant
Frequency
(Hz±150) |
SPL
(dB/WM) |
Frequency
Range (Hz) |
Weight
(grams) |
Frame |
Spec.
 |
Width
(MM) |
Length
(MM) |
Thick.
(MM) |
Nom. |
Max. |
| 1635CP08 |
16.1 |
35 |
5.3 |
1.0 |
2.0 |
8 |
640 |
78 |
450-20K |
4.0 |
Plastic |
Spec. |
| 2035CP08 |
20 |
35 |
5.4 |
1.0 |
2.0 |
8 |
500 |
80 |
400-20k |
5.5 |
Metal |
Spec. |
| 2035CP08-10 |
20 |
35 |
8.3 |
2.0 |
3.0 |
8 |
630 |
78 |
380-20k |
7.0 |
Plastic |
Spec. |
| 2040CP08 |
20 |
40 |
6.5 |
1.0 |
2.0 |
8 |
500 |
80 |
300-20K |
6.3 |
Plastic |
Spec. |

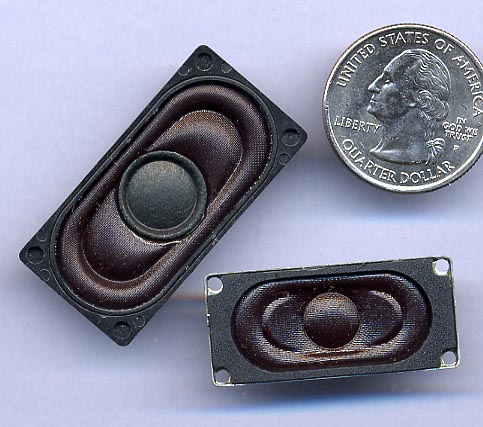

| 2040CP08-8 |
20 |
40 |
10.0 |
1.0 |
2.0 |
8 |
510 |
75 |
200-20K |
7.0 |
Plastic |
Spec |
| 2040CP08-13 |
20 |
40 |
7.2 |
2.0 |
3.0 |
8 |
630 |
79 |
380-20k |
6.0 |
Plastic |
Spec. |
| 2840CP08 |
28 |
40 |
11.2 |
1.0 |
2.0 |
8 |
430 |
81 |
280-20K |
13.0 |
Metal |
Spec. |

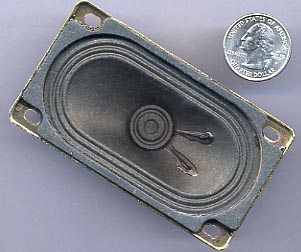

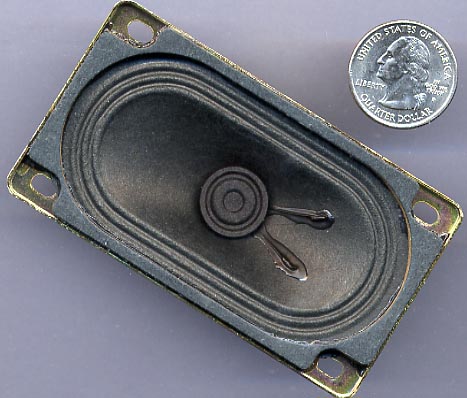

| 50TV90 |
50 |
90 |
32 |
1.0 |
2.0 |
8 |
250 |
90 |
250-13K |
62.4 |
Metal |
|
|
| Specifications subject to change without notice. |
| PCB Mount - Wave Solderable & Washable |
| Model |
Dimensions |
Wattage |
Imped.
(±15%) |
Resonant
Frequency
(Hz±150) |
SPL
(dB/WM) |
Frequency
Range (Hz) |
Weight
(grams) |
Frame |
Spec.
|
Dia.
±0.1
(MM) |
Thick.
±0.1
(MM) |
Nom. |
Max. |
| 23PC08A |
23 |
8.0 |
0.1 |
0.2 |
7.2 |
900 |
95 |
600-3K |
3.5 |
Plastic |
|
| 23PC08B |
23 |
8.0 |
0.1 |
0.2 |
7.2 |
1.5K |
90 |
1300-3.5K |
3.8 |
Plastic |
|
| 30M44B |
30 |
4.5 |
2.0 |
3.0 |
8 |
570 |
79 |
300-6K |
5.0 |
Plastic |
Spec. |
|
| Specifications subject to change without notice. |
Please use these listings as a
starting point for your search, and keep in mind that most of our speakers are
custom, and will be designed with your product in mind.
We will be
pleased to try to create a custom speaker for you.
