Home > Switches > Pushbutton > PSB-110
Action SP4T (On-Off)
Latching
Rating 1.0A 125VAC
1.0A 25VDC
Initial Contact Res. < 70 mil ohms max
Insulation Res. > 100 meg ohms min. @ 500VDC
Life  > 5000 cycles
Operating Force 50-250gf
Contact Timing  Non-Shorting
Soldering Heat  270°C ± 10°C for 3 sec.

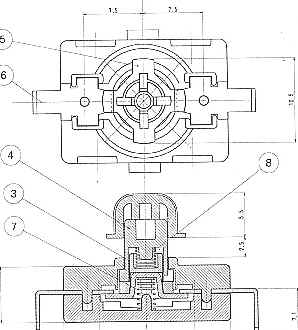

Dimensions subject to change without notice.
