R210-C
bulletPanel Cut-out 22MM x 30MM
bulletDPST, DPDT
bulletQuick-connect terminals
bulletIlluminated Switches with Green, Orange & Red Rocker
bullet16(4)A 250VAC T125 (VDE SEV SEMKO DEMKO NEMKO FIMKO)
10(2)A 250VAC +++ (VDE SEV SEMKO DEMKO NEMKO FIMKO)
16A 125VAC 1/4HP (UL/CSA) 10A 250VAC 3/4HP (UL/CSA)
bulletInitial Contact Resistance : 20 mil ohms max.
bulletInsulation Resistance : 100 meg ohms min. @ 500VDC
bulletDielectric Strength: 1K VAC for 1 minute
bulletElectrical Life: 16(4)A 250VAC 10,000 Cycles
10(2)A 250VAC: 50,000 Cycles
bulletTemperature Range: -20 to +85 degrees. C
Model R210-A R210-B R210-C R210-D R210-E R210-F
Illumination Rocker Rocker  Rocker Lens N/A N/A
Lens Colors N/A N/A N/A Red,
Orange,
Green		 N/A N/A
Frame Colors Black,
 White 		 Black Black Black,
Gray		 Black,
Gray		 Black,
 White
Rocker Colors Red,
Orange,
Green		 Red,
Orange,
Green		 Red,
Orange,
Green		 Black,
 Gray		 Black,
  Gray		 Black,
 White
Markings  O/-, O/I O/I N/A N/A O/-, O/I O/-, O/I
Switch Action DPST DPST DPST DPST DPST DPDT
Terminals Spade
Lugs		 Spade
Lugs		 Spade
 Lugs		 Spade
Lugs		 Spade
 Lugs		 Spade
Lugs

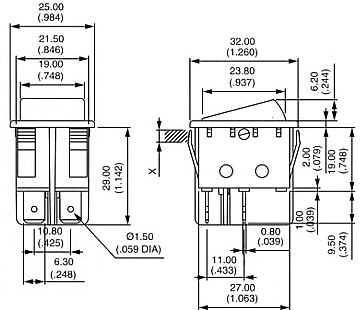

Dimensions subject to change without notice.
